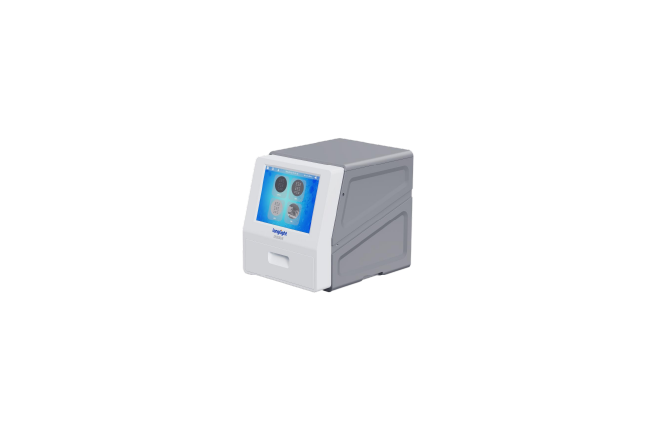

Gel Imaging System GI-200
GI-200 adopts UV or blue-light dye excitation, combined with an optical system and digital imaging, to analyze and document nucleic acid or protein gel electrophoresis results in molecular biology experiments.
Imaging System Features
- All-in-one design: 12.1-inch touch display with smooth, onboard image processing.
- High sensitivity: 6.3-MP high-sensitivity CMOS camera delivers clear, intact bands under low-light conditions.
- Data management & traceability: Role-based user management with categorized log viewing and full audit trail.
- Marker auto-annotation: Automatically recognizes and labels ladder band sizes, reducing manual edits.
- Versatile applications: Transmissive UV, blue, and white light sources; broad dye compatibility.
- Safety for gel excision: Supports external gel cutting; standard UV-shield cutting plate effectively blocks UV to protect users.
Description of Imaging System
The Gel Imaging System is a new model of Gel Doctor. It can provide an efficient, simple and stable research tool for the sample detection and analysis for scientific researchers. The Gel Imaging System is suitable for multiple dye/ probe markers imaging and analysis of nucleic acid gel, protein gel and stain-free gel.
Technical Parameters
| Model | GI-200 |
| Camera system | Black and White CMOS |
| Imaging Pixels | 6.3 megapixels |
| Signal-noise ratio | 66dB |
| LED excitation source |
|
| Image area | 175mm * 230mm |
| Instrument size (L x W x H) | 465mm * 357mm * 425mm |
| Power | 100-240V，50/60Hz，2.5A |
| Cat. No. | 202502G1200 |
Applications of Imaging System
- Longlight Gel Monitor series multifunctional gel image analysis system is suitable for nucleic acid imaging, SDS-PAGE gel imaging, colony imaging, fluorescent labeling experiments, etc.
- Multi-color fluorescent labeling gel detection.
Why Choose Our Gel Imaging System?
Longlight gel electrophoresis system offers a seamless workflow for both nucleic acid and protein research. It is perfectly compatible with other mainstream products, providing a complete solution for nucleic acid and protein research.
High-definition optical system
Equipped with a high-performance camera, it has high sensitivity and low background noise, can capture weak signal bands, and is suitable for low-abundance sample analysis.
Intelligent image processing
The self-developed gel imaging software supports automatic exposure, automatic focus, and image enhancement. You can directly click the photo button to improve data processing efficiency.
Versatile Applications
The system supports imaging of multiple dyes, and can adapt to three light sources: ultraviolet, blue light, and fluorescence. It is a one-machine multi-purpose and cost-effective system.
